HIGHWAY & BRIDGE EXPANSION JOINT SYSTEM

PLANDECON RUBBER JOINT

Design Details

Model	Movement Accomodation (Total)	Module Depth	Module Width	Module Weight	Stud Diam	Module Weight	Module Mx Stud Height Above Shelf	Bolt Torque
	50mm	40mm	274mm	2000mm	12mm	52kg	32mm	45Nm
	65mm	46mm	356mm	2000mm	16mm	74kg	40mm	100Nm
	80mm	52mm	432mm	2000mm	16mm	96kg	41mm	150Nm
	102mm	54mm	590mm	2000mm	20mm	150kg	42mm	175Nm
	165mm	75mm	724mm	2000mm	24mm	272kg	51mm	190Nm
	230mm	93mm	890mm	2000mm	24mm	375kg	60mm	275Nm
	330mm	127mm	1207mm	1220mm	30mm	451kg	70mm	300Nm

PRODUCT DESCRIPTION

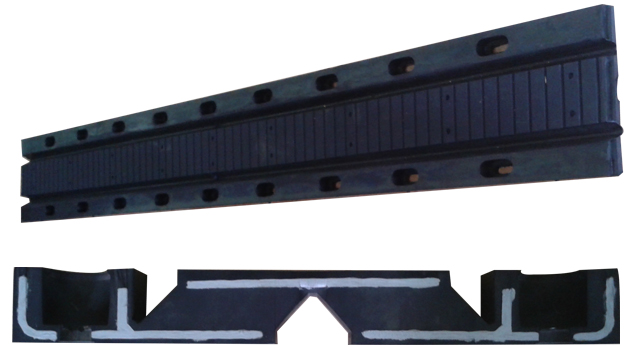

PLANDECON RUBBER JOINT is comprised of steel angles and steel bridging plate system encased in flexible elastomer.

PLANDECON RUBBER JOINT is supplied in module lengths designed to be bolted to the structural deck on either side of the expansion joint in the structure.

FEATURES

• Heavy Duty and Long Durability
• Movement Accommodation up to 330mm
• Encased in Corrosive Resistant Elastomer
• Water Tightness and Anti-Skidding
• Smooth Wear Resistant Surfacing

INSTALLATION

• Premix Marking and Saw Cut to the required joint dimension
• Hacking and Cleaning by Air Blower and Hot Air Burner
• Removing all Laitance and Sub-Standard Material
• Applying Leveling Screed to achieve an uniform lever between a joint system and premix
• Drilling Bolt Holes for Stud Installation
• Fixed the Panel and Tighten the Bolts
• Applying Nosing into the prepared trench
• Sealing the Bolt Holes with Sealant
• Open to Traffic within 1 – 2 Hours
