RUBBER WATERSTOP & PVC WATERSTOP



PVC DUMBELL WATER STOP


PVC Dumbell Water stop is extruded from high grade PVC polymer. It meets most international standards and widely use.

TYPICAL APPLICATION

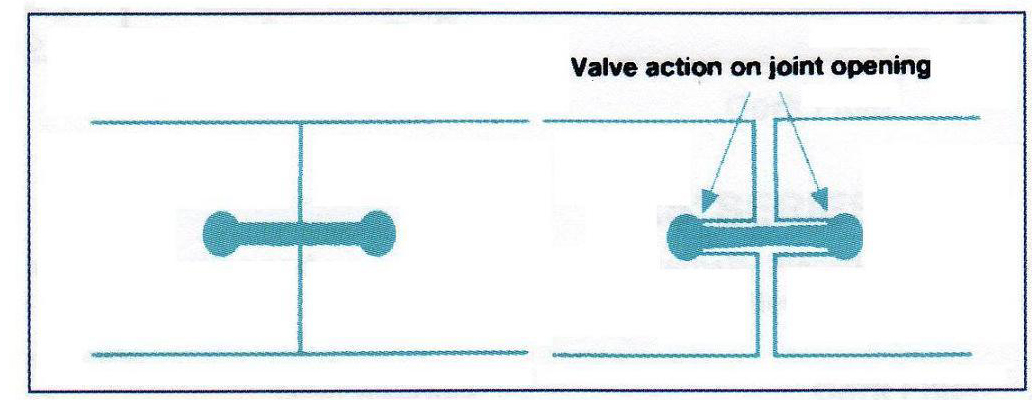

PVC water stops is design for construction, contraction and delination joints



Dumbell Series - 150mm and 230mm width

DESIGN REQUIREMENT:-

The width and thickness of the water stop to be used depends on concrete thickness, the position of reinforcement, aggregate size and concreting method employed.

Generally, the 230mm width water stop is for wall of slab of 230mm thickness or more. For wall or slab less that 230mm thick, a narrower water stop of approximate equal to the wall or slab.

Technical Data Physical Properties
Form - Extruded thermoplactic sections
Colour - Blue

Hydrostatic Head - Up to 30m
Tensile Strength - min. 14MN/m²
Elongation at break - Min. 300%
Hardness - 80-90 Shore 'A'
B.S.2571.1900
Test Method - B.S.2782 - 320A

STANDARD PARKING

Dumbell Roll Length / meter
150mm width 15
230mm width 15
Note: Packing other than the above can be manufacture on request.
Made in Malaysia
