PLANDECON COMPRESSION SEAL JOINT

PRODUCT DESCRIPTION

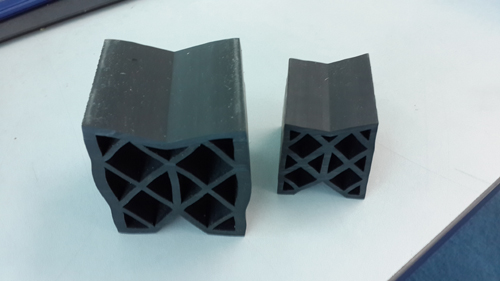

PLANDECON COMPRESSION SEAL JOINT series are a range of extruded neoprene seals designed for sealing expansion joints in bridge, parapet, cark park, building, tunnel and water treatment plants.

FEATURES

Maintenance Free
Fast and Easy Installation
Temperature Stable
Resistance to Abrasion and Puncture
Very Good Recovery Characteristic
Chemical Resistance and Weather Proof

MATERIAL SPECIFICATION

Oil Swell (ASTM Oil No. 3) – 70 hrs. @ 100 °C, weight change 45 % max.Ozone Resistance (300pphm / 20 % strain / 40 °C / 70 hrs.) No Crack

Specification	ASTM D3542
Material	Neoprene
Tensile Strength, min.	13.8 MPa
Elongation at Break, min.	250 %
Hardness (Shore A)	50 - 60
CS (70 hrs. / 100 °C)	40 % max.
Aging (96 hrs. / 70 °C) Change in TS Change in EB Change in HS	20 % max. 20 % max. 0 – 107 points, max.

Installation

Series	Width	Height	Groove Depth (B)	Joint Width Range A Movement	Movement
J 502	44 mm	51 mm	60 mm	22 – 38 mm	16 mm
J 497	64 mm	70 mm	89 mm	29 – 54 mm	25 mm
J 496	76 mm	87 mm	108 mm	34 – 64 mm	30 mm
J 610	89 mm	89 mm	108 mm	34 – 76 mm	42 mm
