PLANDECON PVC WATERSTOP

PVC Series Waterstop is extruded from specially formulated and blended high grade PVC compound. It meets most international standard and widely applied in the construction industry.

TYPICAL APPLICATION

AGRICULTURE

Dams, Canals, Aquaducts, Large Reservoirs, Irrigation Projects

PUBLIC UTILITIES

Bridges, Road Embankments, Concrete Roads, Tunnels, Water Tanks, Swimming Pools, Municipal Hydraulic Projects, Water Filtration Plants, Clarifiers, Sewage Disposal System Neutralization Tanks.

BUILDINGS

Basements & Foundations Floor Slabs, Terraces, Concrete Runways, Retainning Walls, Overhead & underground Water Tanks, Multistoried Buildings.

INDUSTRIES

Fertilizer, Steel, Effluent Treatment Plants, Thermal Power Station, Atomic Reactors, Shipyards & Docks, Cooling Towers

Full Series system from 150mm - 250mm width.
Available in centrally and externally placed.

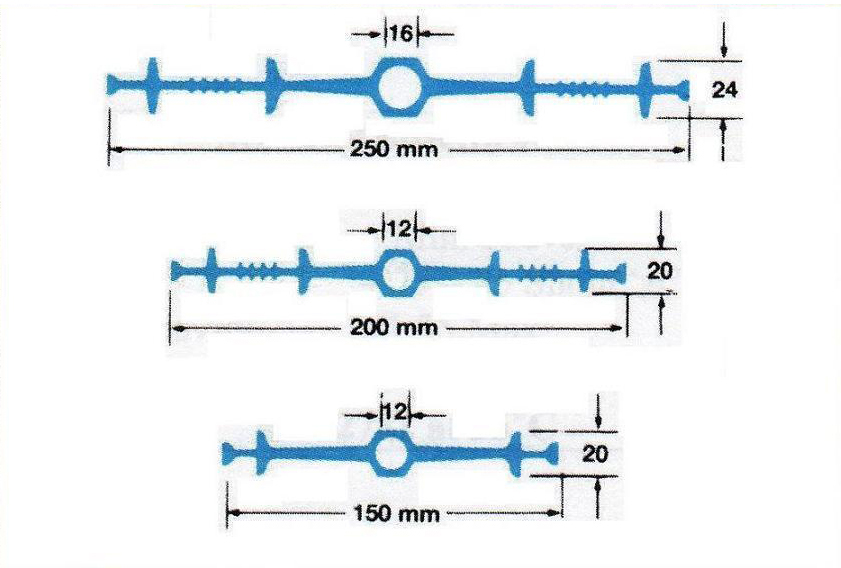

'W' - Series Centrally Placed for Construction and Contraction Joints	'H' - Series Centrally Placed for Expansions and Construction Joints

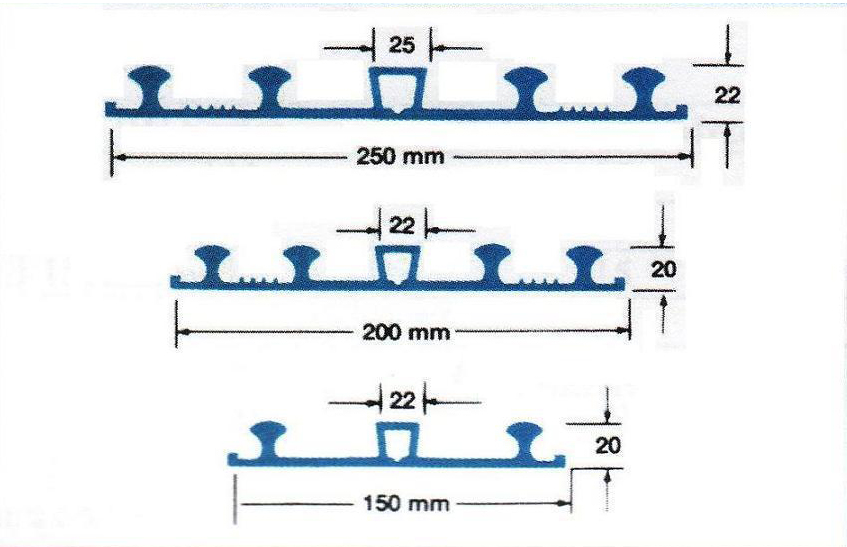

'RR' - Series Externally Placed for Construction and Contruction joints	'RS' - Series Externally Placed for Expansions and Construction Joints

SLECTION WIDTH OF WATERSTOP:

The choice of appropriate width of waterstop is mainly governed by slab thickness, position of reinforcement and aggregate size. As a general rule the 250mm width selections are appropriate for slab thickness of 250mm and over, allowing good compaction and width of barrier to water penetration. For slabs less than 250mm thickness the use of a smaller section approximating to the slab thickness will be appropriate.

Whenever possible, use the same width of waterbar throughout and employ standard intersection pieces, this will simplify installation and site joining. keep joint details as straight forward as possible, avoiding acute angle joint intersections which may prove difficult to fabricate, shutter and cast successfully where necessary, factory made fabrication can be supplied to simplify assembly of the complete waterstop network.

PROPERTIES

Optimum resilience
High Elasticity & Strech Strength
Immune to corrosion
Excellent weather resistant
Effective in tropical climates
High mechanical strength
Good Aging & longer life
Unaffected by acids, alkalis, metals, salts and other chemical
Non-hazadrous and Fire retardent
Lower water absorption than rubber
Easy Welding & installation
Withstands high Hydrostatic pressure
Works as Water Tight Seal
Allows safe passage of seepage water
High Tensile Strength
Can bear shocks of heavy turbines, earth quake, floods

Technical data	Material Specification
Form - Extruded Thermoplastic Sections Colour - Blue Hydrostatic Head. - Up to 30m Joint Movement - Up to 10mm	Tensile Strength - Min. 14MN/m² Elongation at break - min. 300% Hardness - 80 - 90 Shore 'A' Specific gravity - 1.35Max B.S.2571.1990 Test Method - B/S.2782-320A

EQUIPMENT

Heater Blade is Available for site jointing purpose

INTERSECTIONS

Standard series of intersection is available on request

STANDARD PACKING

'W' Series	Roll Length / Meter
250mm width	12
200mm width	15
150mm width	20

'H' Series	Roll Length / Meter
250mm width	12
200mm width	15
150mm width	15

'RR' Series	Roll Length / Meter
250mm width	12
200mm width	12

'RS' Series	Roll Length / Meter
250mm width	12
200mm width	12

Note: Packing other than the above can be manufacture on request.
Made in Malaysia.
