ISOFlex - PLANDECON ASPHALTIC PLUG JOINT » material specification

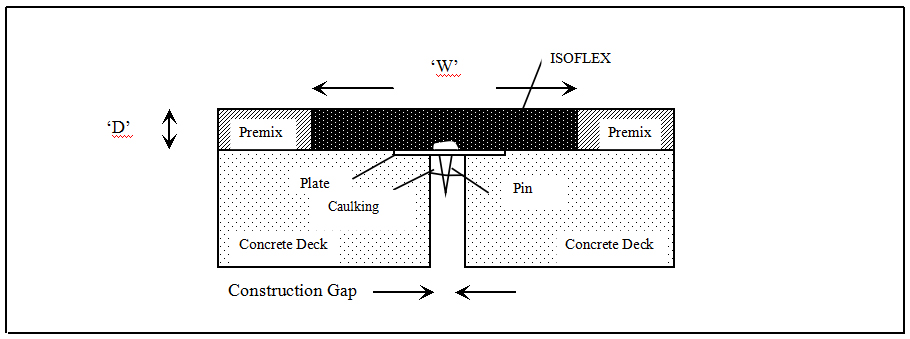

‘ISOFLEX’ ASPHALTIC PLUG JOINT

Material Specification

Binder

Physical Characteristics of Binder are given as follows :

Item	Specification	Test Method
Penetration at 25°C	< 40 dmm	ASTM D3441
Softening Point	> 100°C	ASTM D D36 -95
Flow Resistance at 60°C, 5 hrs.	< 3mm	ASTM D 1191
Recommended Application Temperature		170°C - 190°C
Recommended Maximum Safe Heating Temperature		220°C

Aggregate

Two sizes of aggregate, 6mm – 10mm and 14mm – 19mm are used for ISOFLEX Joint System from basalt granite and dolerite groups has been shown to be satisfactory in exhibiting excellent resistance to crushing, impact, abrasion, polishing and flakiness.

The types of aggregate recommended as follows :

Aggregate Abrasion Value (A.A.V.)	max 5.0
Polished Stone Value (P.S.V.)	max 62
Aggregate Impact Value (A.I.V.)	min 16
Aggregate Crushing Value (A.C.V.)	min 14

ISOFlex - PLANDECON ASPHALTIC PLUG JOINT material specification

‘ISOFLEX’ ASPHALTIC PLUG JOINT

Material Specification

Binder

Item	Specification	Test Method
Penetration at 25°C	< 40 dmm	ASTM D3441
Softening Point	> 100 °C	ASTM D D36 -95
Flow Resistance at 60°C, 5 hrs.	< 3mm	ASTM D 1191
Recommended Application Temperature		170°C - 190°C
Recommended Maximum Safe Heating Temperature		220 °C

Aggregate

Aggregate Abrasion Value (A.A.V.) : max 5.0

Polished Stone Value (P.S.V.) : max 62

Aggregate Impact Value (A.I.V.) : min 16

Aggregate Crushing Value (A.C.V.) : min 14
